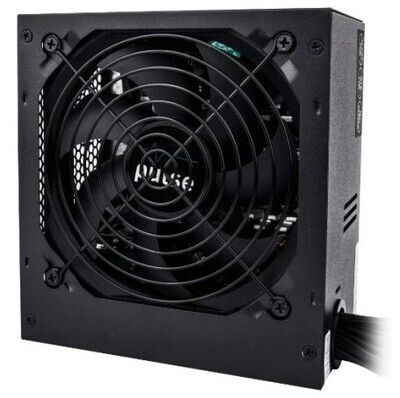

Name: Pulse Power Plus 500W PSU, ATX 12V, 80PLUS Bronze & ErP, 4 x SATA, PCIe, Fluid Dynamic Fan
Brand: Pulse
SKU: 5055492401991
Price: 32.5 GBP
Availability: OutOfStock

Pulse Power Plus 500W PSU, ATX 12V, 80PLUS Bronze & ErP, 4 x SATA, PCIe, Fluid Dynamic Fan

Product Details

Brand: Pulse

80PLUS Bronze Certified & ERP Ready

Compatible with Intel ATX 12V v.2.3 and EPS 12V v.2.92 standards
Single +12v rail provide more stability and safer power output
Silent FDB 120mm fan for best overall airflow and heat dissipation
Over voltage protection, Over power protection, Short Circuit protection, Thermal overload cut-off protection
Safety agency approval: CE, CB
Low noise and ripple
This 12V ATX PC Power Supply is the best choice for your Desktop Computer
80+ Bronze Certified

AC INPUT: 100-240 VAC 3.5/7A 60/50Hz
DC	+3.3V	+5V	+12V1	-12V	+5VSB
Output	6A	8A	36A	0.5A	2A

Designed to conform to the new EuP Lot 6 laws, The Pulse PLus 500W PSU is an 80+ Bronze Certified unit that offers a minimum of 85% performance at 50% load. Ideal for system integrators, this unit features a low noise 12cm fan, a black coated chassis and sufficient cabling to support most entry to mid level system builds.

Form Factor - ATX

Series - Pulse Power Plus

Modular - Fully Wired

Compatability - ATX 12V v.2.3 and EPS 12V v.2.92

Wattage - 500 W

Connectors

1 x 240 +4 PIN Main
1 x CPU 4-PIN 12V
6 x SATA
3 x 4 PIN Molex Peripheral
1 x Floppy
1 x PCIe

Rail Design - Single +12v Rail

AC Input - 100 - 240V AC 3.5 - 7A 60 - 50Hz

PFC - Active PFC

Fan Type - 120mm Fluid Dynamic Bearing (FDB) Fan

Fan Bearing - Fluid / Hydraulic Bearing

Noise - < 21 dBA

80+ Certification - 80+ Bronze

Efficiency - > 81% (85% max)

MTBF - > 100,000 Hours

Protection - OVP / UVP / OTP / OCP / OLP / OPP / SCP

Additional Features

80PLUS Bronze Certified
ERP Ready
Low Noise andRipple
Cable Management ties
Installation Screws

Weight/Dimensions

1.27 kg

151mm x 86mm x 141mm (W x H x D)
